1. Draw a horizontal line 1⅞" long.

2. From one end set off radius ⅞" and describe circle.

3. Draw lines parallel to the horizontal line, ¼" from it, on each side, and complete end of model by vertical line.

4. Have the parallel lines just drawn extend ½" within the circular part.

5. Small holes may be punched at the extremities of these lines.

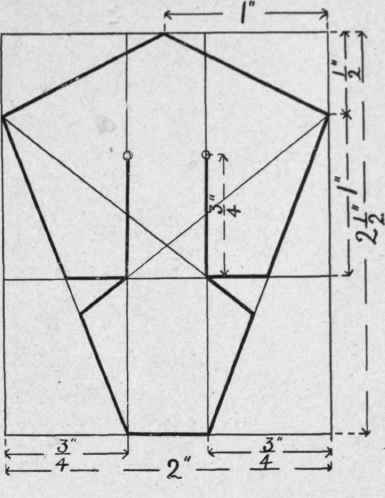

No. 20B. Book-Mark

1. Construct rectangle

2½"X 2".

2. Draw lines inside parallel to the sides.

3. Mark off distances and draw oblique lines, completing the outline of the model.

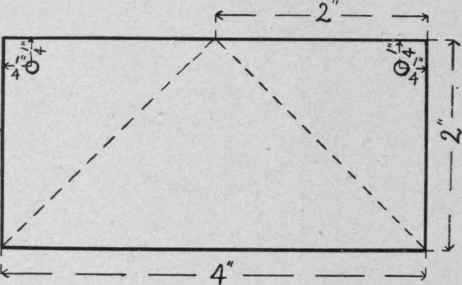

No. 22. Book-Mark

1. Construct the rectangle 4"X 2".

2. Find the centre of one of the long sides and connect it with the ends of opposite side.

Note. - Tie together folded parts with twine or knitting cotton. The holes for tying are ¼" from the edge on this and the following models, when the distances are not dimensioned.

Folding Exercise

1. Construct square 4½".

2. Draw dotted lines (see page 11).

3. Fold on dotted lines

(see page 9).
