By placing one of the coils, A, in the block, D, then placing in the cavity in the top of the block the compass, with the line marked N S arranged at right angles to the axis of the coil, a serviceable galvanometer will be formed (Fig. 8). By turning the galvanometer so that the needle will point north and south without the current passing, with N underneath one end of the needle, and then connecting the poles of the battery with the terminals of this galvanometer, a deflection of the compass needle will be produced, the direction of which depends upon the direction of the current.

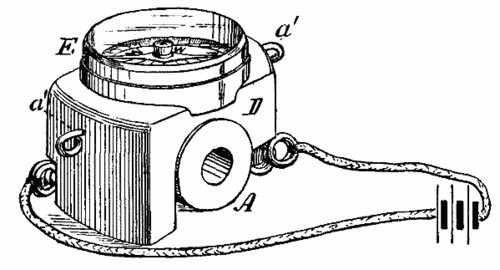

FIG. 8. - GALVANOMETER.
