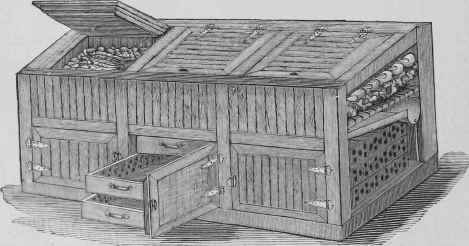

These refrigerators are to be kept full of ice so to reduce the temperature inwardly and to avoid inconvenience arising from the excessive heat of the atmosphere. A refrigerator as shown in the accompanying design is all that is necessary for a restaurant, etc. At a third of its height are placed wooden gratings to uphold the ice, underneath is to be found a sheet of zinc or galvanized sheet iron with a small gutter, at the end. between this and the sheet of iron is a space of six inches. The bottom parts of these ice-boxes are used for keeping either beef palates, calf's heads?, sheep's trotters, croquette preparations of all kinds, etc.; each compartment should be entirely separate from one another, having a special one for fish, one for poultry, one for game, one for cold meats, one for garnishings, etc.

Fig. 188.

The Ice box is simply a box of an oblong shape sufficiently thick to be filled with a nonconducting material such as charcoal, sawdust, tow, or simply an hermetically empty space not to allow the air to pass through the box; they are lined inside with galvanized sheet iron or zinc.

The cold room is of a more modern invention, the meats being hung up in the inside. Cooked meats, also different provisions requiring a cold temperature of forty-five to fifty degrees Fahrenheit, such as butter, milk or cream, rest on shelves or in drawers, without being in direct contact with the ice, for it is evident that the cold air surrounding these provisions does not contain the slightest moisture that might destroy their properties. Another advantage the cold room has is that a quantity of cold entrees or sweet dishes already decorated with the jellies that are to be served will keep in perfect condition for a few days, while those placed directly on the ice do not afford the same security; however, each one has its own peculiar advantages and one must not be sacrificed for the other, on the contrary in all large kitchens each one has its own place and both have become indispensable.

Meat-Safe (Garde-Manger)

This is a kind of round or square cage composed of metallic cloth on a framework of iron or wood, provided inside with several shelves; also hanging hooks to which can be hung meats, poultry and game. On the shelves are placed all the provisions that should be exposed to the air without incurring any danger of contact with flies. These meat-safes are either suspended from the ceiling of the pantry by a pulley or else fastened to the wall outside a window; in both cases in order to have them accomplish their purpose they must be exposed to a thorough draught of air in as cool a place as possible. If the meat safe is hung in a room it can be entirely open on top, if on the contrary it is fastened outside then the upper part must certainly have a slightly inclining roof so that no rain can penetrate the inside. These meat-safes are only useful where ice is scarce for ice-boxes, are far preferable under all circumstances.
